The Vitronics Soltec Delta X has evolved from a long heritage of soldering machines with thousands in production worldwide.  With technology driven features developed over generations the Delta X is a reliable, dependable and cost-efficient wave soldering machine.

FEATURES & BENEFITS

Outstanding Throughput

Up to three products can be processed simultaneously for maximized throughput.

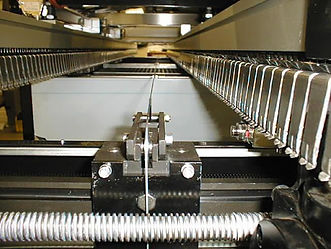

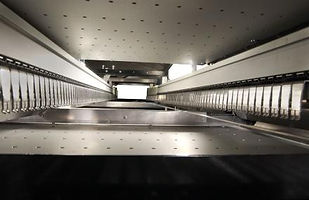

Conveyor System - Parallelism



A robust conveyor and chains keep the assembly interface with the wave equal and parallel.

  • Multiple lead-screws that are mechanically driven ensure parallel rails: Parallel to 1.0 mm

  • Solderpot blocking system guarantees repeatable positioning

  • Ensures repeatable interfacing of product to the solderwaves

  • Thermal expansion systems on entrance end allows for smooth trouble free operation
















Fluxing Unit

  • Pressure controlled flux supply with stepper motor for precise, repeatable flux application.

Preheater

  • Preheat configurations for process flexibility: IR calrod, quartz lamps and forced convection.  Modules are easy exchangeable and configurable in the software.

















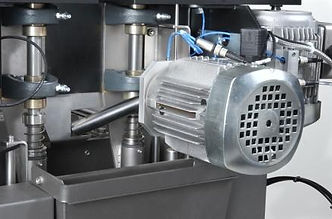

Solderpot

Titanium solder pot components with unique dross management design.

Heavy Duty Titanium Fingers

  • Standard HD fingers will dramatically reduce finger replacement

  • Flexible chain allows for smooth interface and will not warp the assembly due to the thermal expansion



Crash Detection

  • Ensures proper loading and unloading of the PCB in the fingers

  • Mechanical sensitivity adjustment

  • Software controlled sensitivity time out and on/off

  •  Location specific crash alarm and designation


    Heavy Duty Titanium Fingers

  • Standard HD fingers will dramatically reduce finger replacement

  • Flexible chain allows for smooth interface and will not warp the assembly due to the thermal expansion











    Crash Detection

  • Ensures proper loading and unloading of the PCB in the fingers

  • Mechanical sensitivity adjustment

  • Software controlled sensitivity time out and on/off

  •  Location specific crash alarm and designation


























ENHANCED TECHNOLOGY

Base Wire Support

  • Optional PCB wire support from fluxer to end of main wave

  • Retracts under rail when not in use via down turn cams

  • Supports multi-up panels

  • 1.5 mm wire




















PCB Tracking Systems

The Delta X platforms tracking systems automatically recognizes the mechanical contact point of all subsystems; these positions can be modified per recipe.

  • Allows for recipes independent optimization of wave contact position

  • Assists with warped assemblies at wave interface

  • Prevents masking of overhanging components

  • Keeps excessive flux of pallets, minimizing cleaning


Nozzle Spray Fluxer

  • Accurate and repeatable

  • Self-speed calibration

  • Heavy duty locking mount of spray nozzle

  • Accurate flux deposition by stepper motor control

  • Sealed flux delivery system

  • Statistical test analysis confirmed high repeatability

  • Under rail protection covers prevent flux penetration to underside of rail and conveyor chains

  • Ease of use















    NitroWave

  • Decreases wetting time

  • Up to 50% reduction in dross

  • Easily retrofitted

  • Low cost of ownership























SmartWave

  • Patented technology

  • Ensures excellent hole fill by producing vertical pressure within the wave

  • Allows for soldering certain SMT assemblies with one wave

  • Increase wave depth without pumpkin additional solder
