XSCAN-A100R
PRODUCT DESCRIPTION
The answer for quality
Xscan a-series: compact dimension using by flat panel detector comparing to image intensifier minimized the magnification using by detector tilt comparing to table tilt available to large size PCB.
APPLICATIONS
-
PCB, PCBA Surface Mounted Board, MLB, ect.
-
μBGA, BGA, CSP, ACF, Flip-Chip, FPCB
-
Semiconductor Chip, Fine Pitch Electronic Components, etc.
-
Engineering Plastic Injection Molding, Camera Module, etc.
-
Rechargeable Batteries (incl. EV & ESS)
FEATURES
-
High Resolution FPD (Flat Panel Detector)
-
Detector Tilt (50˚)
-
Large PCB size Available
-
Navigation User interface (CNC Programming)
-
Real 3D CT (option)
-
Tube Focus Size : 5㎛
-
World class High resolution X-ray image
-
Various Optional Functions (Rotation, CT, 3D)
Easy to Use & User Friendly Operation
INSPECTION IMAGES
CT & 3D VOLUME RENDERING
TECHNICAL SPECIFICATIONS
Focal Spot Size 5㎛
Voltage/Current 100kV / 250uA
Magnification x214 / x429
X-Ray Detector FPD (Flat Panel Detector)
Detector Tilt Angle Tilt 50˚
Manipulator Basic] 4-Axis (X, Y, Z, Detector Tilt) / Option] Cone Beam CT Rotation
Table size(=Inspection Area) 500 x 500 mm
Max. Sample Loading 5kg
X-Ray Leakage Dose ＜1uSv/hour
Dimension
(WxDxH mm) 1360 x 1440 x 1700
Equipment Weight(kg) 1400kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks Option] Cone Beam CT&3D / Rotation Table
XSCAN-A130H
PRODUCT DESCRIPTION
The answer for quality
Xscan a-series: compact dimension using by flat panel detector comparing to image intensifier minimized the magnification using by detector tilt comparing to table tilt available to large size PCB.
APPLICATIONS
-
PCB, PCBA Surface Mounted Board, MLB, ect.
-
μBGA, BGA, CSP, ACF, Flip-Chip, FPCB
-
Semiconductor Chip, Fine Pitch Electronic Components, etc.
-
Engineering Plastic Injection Molding, Camera Module, etc.
-
Rechargeable Batteries (incl. EV & ESS)
FEATURES
-
High Resolution FPD (Flat Panel Detector)
-
Detector Tilt (50˚)
-
Large PCB size Available
-
Navigation User interface (CNC Programming)
-
Real 3D CT (option)
-
Tube Focus Size : 5㎛
-
World class High resolution X-ray image
-
Various Optional Functions (Rotation, CT, 3D)
Easy to Use & User Friendly Operation
INSPECTION IMAGES
CT & 3D VOLUME RENDERING
TECHNICAL SPECIFICATIONS
Focal Spot Size 5㎛
Voltage/Current 130kV / 300uA
Magnification x158/ x316
X-Ray Detector FPD (Flat Panel Detector)
Detector Tilt Angle Tilt 50˚
Manipulator Basic] 4-Axis (X, Y, Z, Detector Tilt) / Option] Cone Beam CT Rotation
Table size(=Inspection Area) 500 x 500 mm
Max. Sample Loading 5kg
X-Ray Leakage Dose ＜1uSv/hour
Dimension
(WxDxH mm) 1360 x 1440 x 1700
Equipment Weight(kg) 1400kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks Option] Cone Beam CT&3D / Rotation Table

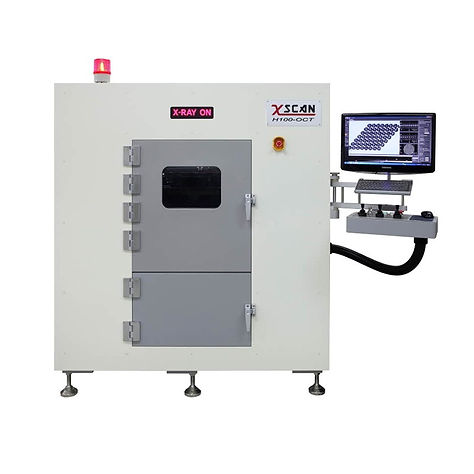

XSCAN-H100-OCT
PRODUCT DESCRIPTION
5 Inch Flat Panel Detector (2,352 x 2,944 pixels) X-ray Inspection System
APPLICATIONS
-
PCB, SMT, LED, Semiconductor, LCD, Automotive, Battery
-
μBGA ,BGA, CSP, ACF, Flip-Chip ,FPCB etc
2D & TILT VIEW INSPECTION IMAGES
TECHNICAL SPECIFICATIONS
Tube Type Closed
Focal Spot Size 5.0㎛
Min. Detectability 3.0㎛
Max. Output Power 39W
X-Ray Detector 5 inch Flat Panel Detector (2352×2944 pixels)
Detector Tilt Angle 60˚
Table Rotation 360˚
Table size 525 x 540 mm
(=Inspection Area)
Max. Sample Loading 5kg
Manipulator 7-Axis (X1, Y1, X2, Y2, Z, Detector Tilt, Table Rotation)
X-Ray Leakage Dose ＜1uSv/hour
Dimension 1700 x 1700 x 1800
(WxDxH mm)
Equipment Weight(kg) 3300kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks CT & 3D

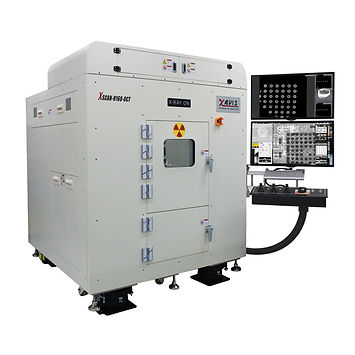

XSCAN-H160-OCT
PRODUCT DESCRIPTION
2D & 3D oFF-LINE HIGH RESOLUTION X-RAY INSPECTION SYSTEM
APPLICATIONS
-
PCB, SMT, LED, Semiconductor, LCD, Automotive, Battery
-
μBGA ,BGA, CSP, ACF, Flip-Chip ,FPCB etc
2D & TILT VIEW INSPECTION IMAGES
OBLIQUE CT & 3D RENDERING IMAGES
TECHNICAL SPECIFICATIONS
Tube Type Open
Focal Spot Size 2.0/0.9㎛
Min. Detectability 0.7㎛
Max. Output Power BE Target : 10W, Diamond Target : 23W
X-Ray Detector 5 inch Flat Panel Detector (2352×2944 pixels)
Detector Tilt Angle 60˚
Table Rotation 360˚
Table size 525 x 540 mm
(=Inspection Area)
Max. Sample Loading 5kg
Manipulator
7-Axis (X1, Y1, X2, Y2, Z, Detector Tilt, Table Rotation)
X-Ray Leakage Dose ＜1uSv/hour
Dimension 1700 x 1700 x 1800
(WxDxH mm)
Equipment Weight (kg) 3500kg
Power Supply 220 VAC Single phase 50/60Hz
Remarks CT & 3D
