PRODUCT DESCRIPTION

The answer for quality

Xscan a-series: compact dimension using by flat panel detector comparing to image intensifier minimized the magnification using by detector tilt comparing to table tilt available to large size PCB.

APPLICATIONS

  • PCB, PCBA Surface Mounted Board, MLB, ect.

  • μBGA, BGA, CSP, ACF, Flip-Chip, FPCB

  • Semiconductor Chip, Fine Pitch Electronic Components, etc.

  • Engineering Plastic Injection Molding, Camera Module, etc.

  • Rechargeable Batteries (incl. EV & ESS)

FEATURES

  • High Resolution FPD (Flat Panel Detector)

  • Detector Tilt (50˚)

  • Large PCB size Available

  • Navigation User interface (CNC Programming)

  • Real 3D CT (option)

  • Tube Focus Size : 5㎛

  • World class High resolution X-ray image

  • Various Optional Functions (Rotation, CT, 3D)

Easy to Use & User Friendly Operation

INSPECTION IMAGES

CT & 3D VOLUME RENDERING

TECHNICAL SPECIFICATIONS

Focal Spot Size                                                                    5㎛

Voltage/Current                                                                  100kV / 250uA

Magnification                                                                      x214 / x429

X-Ray Detector                                                                    FPD (Flat Panel Detector)

Detector Tilt Angle                                                             Tilt 50˚

Manipulator                                                                        Basic] 4-Axis (X, Y, Z, Detector Tilt) / Option] Cone Beam CT Rotation

Table size(=Inspection Area)                                            500 x 500 mm

Max. Sample Loading                                                        5kg

X-Ray Leakage Dose                                                          <1uSv/hour

Dimension

(WxDxH mm)                                                                      1360 x 1440 x 1700

Equipment Weight(kg)                                                      1400kg

Power Supply                                                                     220 VAC Single phase 50/60Hz

Remarks                                                                              Option] Cone Beam CT&3D / Rotation Table

XSCAN-A130H

A130

PRODUCT DESCRIPTION

The answer for quality

Xscan a-series: compact dimension using by flat panel detector comparing to image intensifier minimized the magnification using by detector tilt comparing to table tilt available to large size PCB.

APPLICATIONS

  • PCB, PCBA Surface Mounted Board, MLB, ect.

  • μBGA, BGA, CSP, ACF, Flip-Chip, FPCB

  • Semiconductor Chip, Fine Pitch Electronic Components, etc.

  • Engineering Plastic Injection Molding, Camera Module, etc.

  • Rechargeable Batteries (incl. EV & ESS)

FEATURES

  • High Resolution FPD (Flat Panel Detector)

  • Detector Tilt (50˚)

  • Large PCB size Available

  • Navigation User interface (CNC Programming)

  • Real 3D CT (option)

  • Tube Focus Size : 5㎛

  • World class High resolution X-ray image

  • Various Optional Functions (Rotation, CT, 3D)

Easy to Use & User Friendly Operation

INSPECTION IMAGES

CT & 3D VOLUME RENDERING

TECHNICAL SPECIFICATIONS

Focal Spot Size                                                                    5㎛

Voltage/Current                                                                  130kV / 300uA

Magnification                                                                      x158/ x316

X-Ray Detector                                                                    FPD (Flat Panel Detector)

Detector Tilt Angle                                                             Tilt 50˚

Manipulator                                                                        Basic] 4-Axis (X, Y, Z, Detector Tilt) / Option] Cone Beam CT Rotation

Table size(=Inspection Area)                                            500 x 500 mm

Max. Sample Loading                                                        5kg

X-Ray Leakage Dose                                                          <1uSv/hour

Dimension

(WxDxH mm)                                                                      1360 x 1440 x 1700

Equipment Weight(kg)                                                      1400kg

Power Supply                                                                     220 VAC Single phase 50/60Hz

Remarks                                                                              Option] Cone Beam CT&3D / Rotation Table

XSCAN-7650C

XSCAN 7650

PRODUCT DESCRIPTION

Simple and Easy CT & 3D Rendering Software

  • The problems of components’ quality, XAVIS CO., LTD willingly help for the issues.

  • Die-casting, Automotive components, Best methods for industrial inspection Systems.

APPLICATIONS

  • Automotive Components

  • Engine, Piston etc.

  • Wheels Handles etc.

  • Tyres etc.

XSCAN-7600, 8000 series includes optimized high performance and super precision Die-casting exclusive Inspection system to optimize the applicable product size. Furthermore, it has secured the best safety in the business.

  • Medium and Large Size & High Density Die-casting, Casting Products.

  • Automotive components, Aircraft Related Parts Pipe & Tube Welding Parts Inspection, and so on.

TECHNICAL SPECIFICATIONS

Tube Type                                                                             Closed Type

Focal Spot Size                                                                           5.0㎛

Max. Tube Voltage                                                                   150kV

Max. Output Power                                                                   75W

Detector                                                         Flat Panel Detector or Image Intensifier

Max. Inspection Size                                                    500(Ø)x600(H)mm

Max. Sample Loading                                                                30kg

X-Ray Leakage Dose                                                          <1uSv/hour

Dimension                                                                     2,390×1,810×1,960

(WxDxH mm)
Power Supply
220 VAC Single phase 50/60Hz

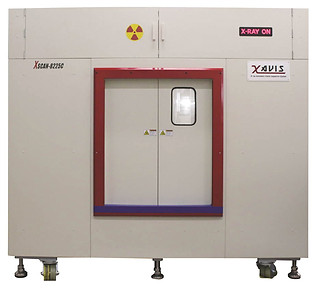

XSCAN-8225C

xavis 8225c

INTRODUCTION

Simple and Easy CT & 3D Rendering Software

  • The problems of components’ quality, XAVIS CO., LTD willingly help for the issues.

  • Die-casting, Automotive components, Best methods for industrial inspection Systems.

APPLICATION

Simple and Easy CT & 3D Rendering Software

  • The problems of components’ quality, XAVIS CO., LTD willingly help for the issues.

  • Die-casting, Automotive components, Best methods for industrial inspection Systems.

INTRODUCTION

Simple and Easy CT & 3D Rendering Software

  • The problems of components’ quality, XAVIS CO., LTD willingly help for the issues.

  • Die-casting, Automotive components, Best methods for industrial inspection Systems.

APPLICATION

Simple and Easy CT & 3D Rendering Software

  • The problems of components’ quality, XAVIS CO., LTD willingly help for the issues.

  • Die-casting, Automotive components, Best methods for industrial inspection Systems.

XSCAN-7600, 8000 series includes optimized high performance and super precision Die-casting exclusive Inspection system to optimize the applicable product size. Furthermore, it has secured the best safety in the business.

  • Medium and Large Size & High Density Die-casting, Casting Products.

  • Automotive components, Aircraft Related Parts Pipe & Tube Welding Parts Inspection, and so on.

TECHNICAL SPECIFICATIONS

Tube Type                                                                                              Closed Type

Focal Spot Size                                                                      0.5mm(Small) / 1.0mm (Large)

Max. Tube Voltage                                                                                    225kV

Max. Output Power                                                                   450W(Small) / 900W (Large)

Detector                                                                                        8 inch FPD or Line Scan

Max. Inspection Size                                                                        500(Ø)x600(H)mm

Max. Sample Loading                                                                           40kg / 80kg

X-Ray Leakage Dose                                                                            <1uSv/hour

Dimension                                                                                    2,600 x 1,940 x 2,100

(WxDxH mm)
Power Supply
220 VAC Single phase 50/60Hz
